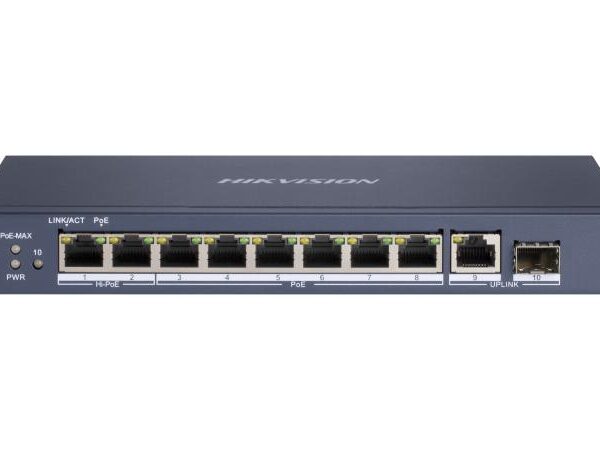

8 Port Gigabit Unmanaged POE Switch I DS-3E0510HP-E
8 Port Gigabit Unmanaged POE Switch I DS-3E0510HP-E AED 299.00 Inclusive of VAT
Back to products
16 Port Gigabit Smart POE Switch I DS-3E1518P-EI/M
16 Port Gigabit Smart POE Switch I DS-3E1518P-EI/M AED 492.00 Inclusive of VAT
ds 3e0528hp e 1 - Hikvision 24 Port Gigabit Unmanaged PoE Switch, 20x gigabit PoE port, 4x gigabit Hi-PoE port, 2x gigabit RJ45 port, and 2x gigabit fiber optical port, Up to 300m long-range transmission I DS-3E0528HP-E
Click to enlarge

Hikvision 24 Port Gigabit Unmanaged PoE Switch, 20x gigabit PoE port, 4x gigabit Hi-PoE port, 2x gigabit RJ45 port, and 2x gigabit fiber optical port, Up to 300m long-range transmission I DS-3E0528HP-E

AED 795.00 Inclusive of VAT

Split in 4 payments - No late fees.*

*Additional service charges will apply on checkout.
SKU: DS-3E0528HP-E
Compare
Add to wishlist
17 People watching this product now!
  • Store Collection
  • Free Delivery
  • (Order value AED 300 or above)

Timing : 10 am to 9.00 pm (Monday to Saturday)

1-2 Working Days

  • Warranty
  • Return Policy
  • Payment Methods:

More details

More details

  • 20 × gigabit PoE port, 4 × gigabit Hi-PoE port, 2 × gigabit RJ45 port, and 2 × gigabit fiber optical port.
  • IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
  • IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
  • 6 KV surge protection for PoE ports.
  • Up to 300 m long-range transmission.
  • PoE watchdog to auto detect and restart the cameras that do not respond.
  • Port isolation to improve network security.
  • Gigabit network access design.
  • Wire-speed forwarding.
  • Store-and-forward switching.
  • Solid high-strength metal shell.



  • General
  • ShellMetal material
  • Net Weight2.98 kg (6.57 lb)
  • Dimensions (W × H × D)440.0 mm × 220.8 mm × 44.0 mm (17.32” × 8.69” × 1.73”)
  • Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply100~240 VAC, 50/60 Hz, Max. 6.5 A
  • Max. Power Consumption400 W
  • Power Consumption in Idle30 W
  • Installation ModeRack (equipped with mounting ears)
  • Surge Protection6 KV
  • Network Parameters
  • Ports24 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
  • MAC Address Table8 K
  • Switching Capacity56 Gbps
  • Packet Forwarding Rate41.664 Mpps
  • Internal Cache4.1Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
  • PoE Port

    Hi-PoE: Ports 1 to 4

    PoE: Ports 1 to24

  • PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • Max. Port PowerPorts 1 to 4: 90 W Ports 5 to 24: 30 W
  • PoE Power Budget370 W
  • Dialing Function
  • Long Range

    Ports 21 to 24: up to 300 m.

    Long range performance may vary depend on camera model or cable condition.

  • Port Isolation

    Ports 1 to 24: port isolation mode to improve network security.

    Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

  • PoE WatchdogPorts 1  to 24: auto detect and restart the cameras that do not respond.
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • ChemistryCE-RoHS (2011/65/EU)
