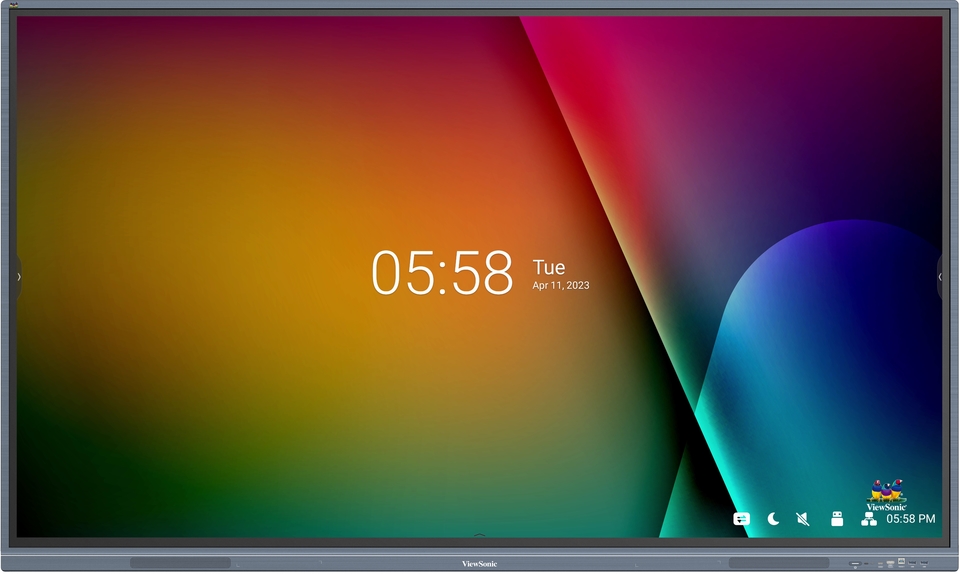

Viewsonic ViewBoard IFP7533-G

Viewsonic ViewBoard IFP7533-G

• DISPLAY


  Panel Size:	75″
  Panel Type:	TFT LCD Module with DLED Backlight. IPS
  Display Area (mm):	1649.664(H) × 927.936(V) (74.6” diagonal)
  Aspect Ratio:	16:9
  Resolution:	UHD 3840×2160(Pixels)
  Colors:	1.07B colors
  Brightness:	450 nits
  Contrast Ratio:	5000:1 (max. with DCR enabled)
  Response Time:	8ms
  Viewing Angles:	H=178, V=178
  Backlight Life:	50,000 Hours (Min.)
  Surface Treatment:	Hardness: 9H Anti-glare coating
  Orientation:	Landscape

• PLATFORM


  Processor:	Quad-core ARM Cortex (A55*4 )
  RAM:	8GB DDR4
  Storage:	128 GB

• TOUCH


  Type/ Tech:	Ultra Fine Touch Technology
  Touch Point:	40 points touch

• INPUT


  HDMI:	HDMI-IN 2.0 x 3 (3840×2160 @60Hz)
  RGB / VGA:	x1
  Audio:	x1
  RS232:	x1
  OPS:	x1 (Optional Intel Standard OPS)
  WiFi:	x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050)

• OUTPUT


  HDMI:	HDMI 2.0 x1
  Audio:	x1
  SPDIF:	x1

• LAN


  RJ45:

  x2

• USB


  Type A:	USB3.0 x4 (Front x2, Rear x2)； USB2.0 x1
  Type B:	x2 (Front x1, Rear x1)
  Type C:	Frontx1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing)

• SPEAKERS


  16W x 2

• TOP CAMERA PLATE


  Yes

• EMBEDDED OS


  Android 11 (Upgradeable to 13)

• BUNDLE SOFTWARE


  Basic Annotation Software:	myViewBoard Whiteboard
  Pro Annotation Software:	myViewBoard for Windows (Embedded in optional Windows Slot-in PC)
  Wireless Presentation:	myViewBoard Display
  Wireless Presentation with Touch Feedback: Viewboard Cast:	Yes

• SPECIAL FEATURES


  All-in-one USB port:	(combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
  Simple LAN sharing between IFP and slot-in device:	10/100M for Android & Slot-in PC
  Light Sensor:	Yes

• POWER


  Voltage:	100-240V AC
  Consumption:	106W ; Off: ≤ 0.5W

• ERGONOMICS


  Wall Mount (VESA® ):

  800×400
