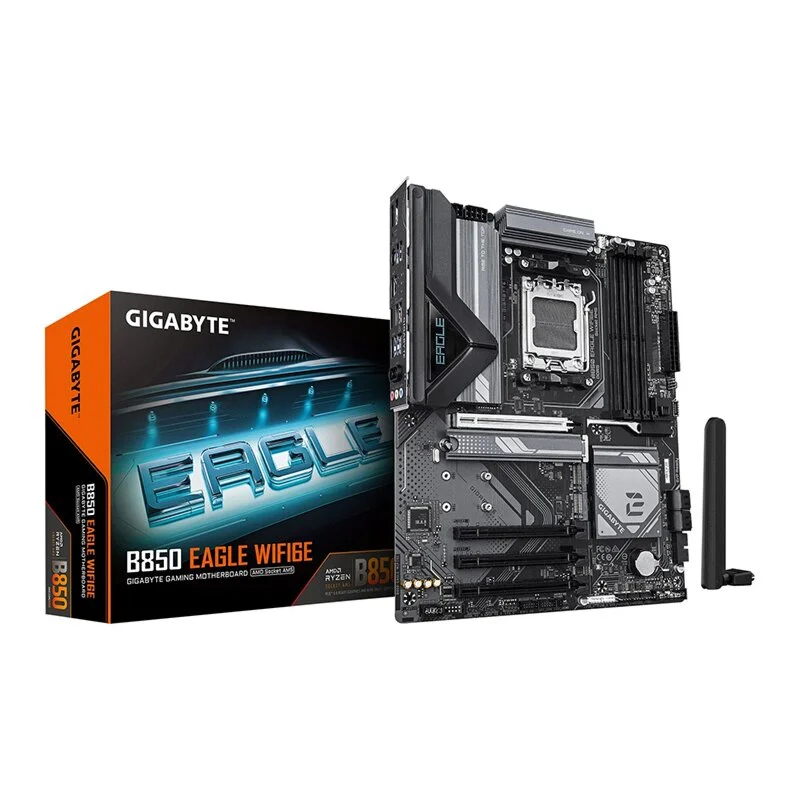

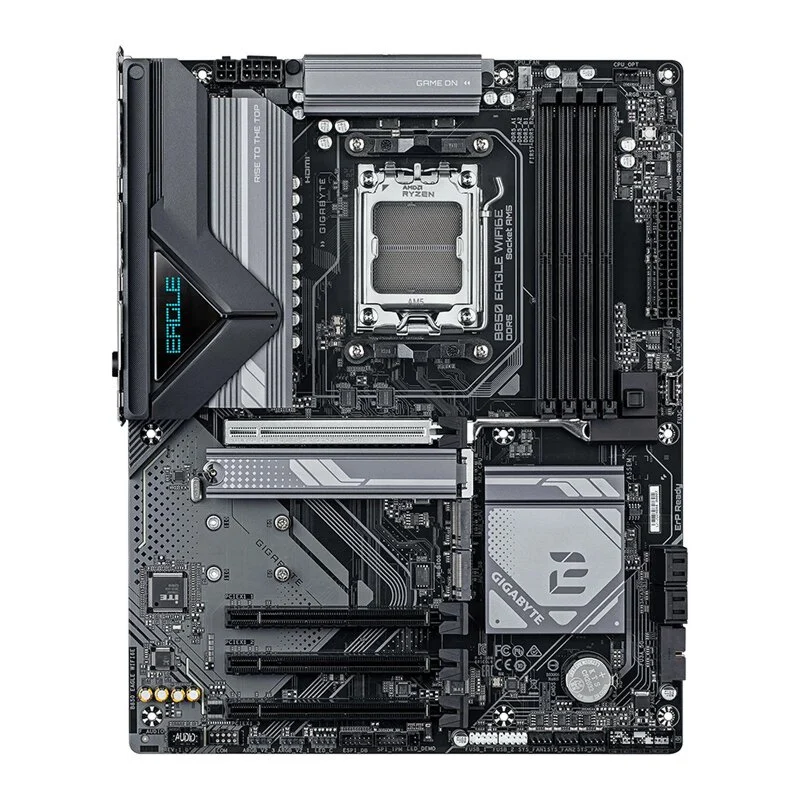

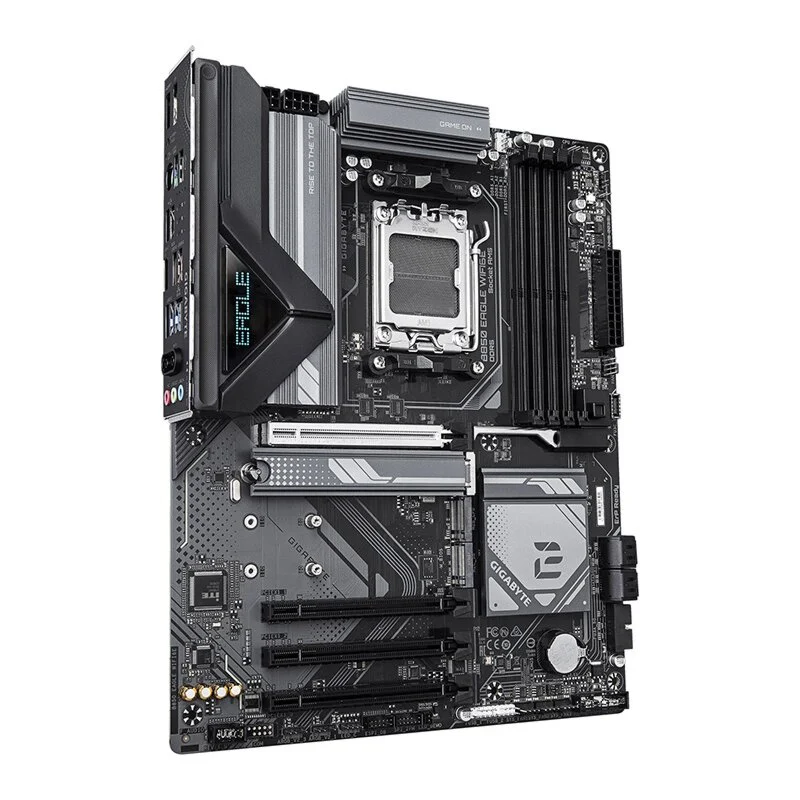

Gigabyte AMD B850 EAGLE WIFI6E AM5 DDR5 ATX Motherboard – Black | B850-EAGLE-WIFI6E

Gigabyte AMD B850 EAGLE WIFI6E AM5 DDR5 ATX Motherboard – Black | B850-EAGLE-WIFI6E

Specifications
Edition GIGABYTE B850 EAGLE Wi-Fi 6E
Form Factor ATX
CPU Socket AM5
Chipset AMD B850
Memory Type DDR5 (Non-ECC)
Memory Channels Dual (2)
Memory Speed DDR5 – 8200 (OC)
Max. Memory Capacity 256GB
Audio 7.1 Channel HD Audio
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors DisplayPort 1.4, HDMI 2.1
Expansion Slots 1 x M.2 (PCIe Gen4x2, 22-80/110)
1 x M.2 (PCIe Gen4x4, 22-80/110)
1 x M.2 (PCIe Gen5x4, 22-80/110)
3 x PCIe 3.0 x16 (x1 Bandwidth)
1 x PCIe 5.0 x16
4 x SATA 6Gb/s
SATA Support SATA3
RAID Support Yes (RAID 0, RAID 1, RAID 10, RAID 5)
Internal I/O 1 x 24-pin (Power)
1 x 4-pin (Power)
1 x 8-pin (Power)
3 x Addressable Gen 2 Header
1 x Clear CMOS Jumper
1 x CPU Fan Connector
1 x CPU OPT Fan Connector
1 x Front Panel Audio Header
1 x Front Panel Connector
1 x Reset Button
1 x RGB (RGBW) LED Strip Header
3 x System Fan Header
1 x System Fan/Water Pump Header
1 x TPM Header
2 x USB 2.0 Header
1 x USB 3.2 Gen1 Header
1 x USB 3.2 Gen1 Type-C Front Panel Header
Network Interface Type 802.11ax Wi-Fi 6E, Wired Gigabit LAN (10/100/1000)
Network Chips 1 x 802.11ax WiFi 6E + BT5.3
Rear I/O Connectors 2 x Antenna Ports
3 x Audio I/O
1 x DisplayPort 1.4
1 x HDMI 2.1
1 x PS/2 Keyboard/Mouse Combo
1 x Q-Flash Plus Button
1 x RJ-45
4 x USB 2.0
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen2 Type-A
Cooling Passive Heatsinks
Water Cooled No
Board Dimensions 305 x 244 mm
Brand
GIGABYTE
Weight
4.000000
Chipset Brand
AMD B850
Socket
AMD AM5
Form Factor
ATX
